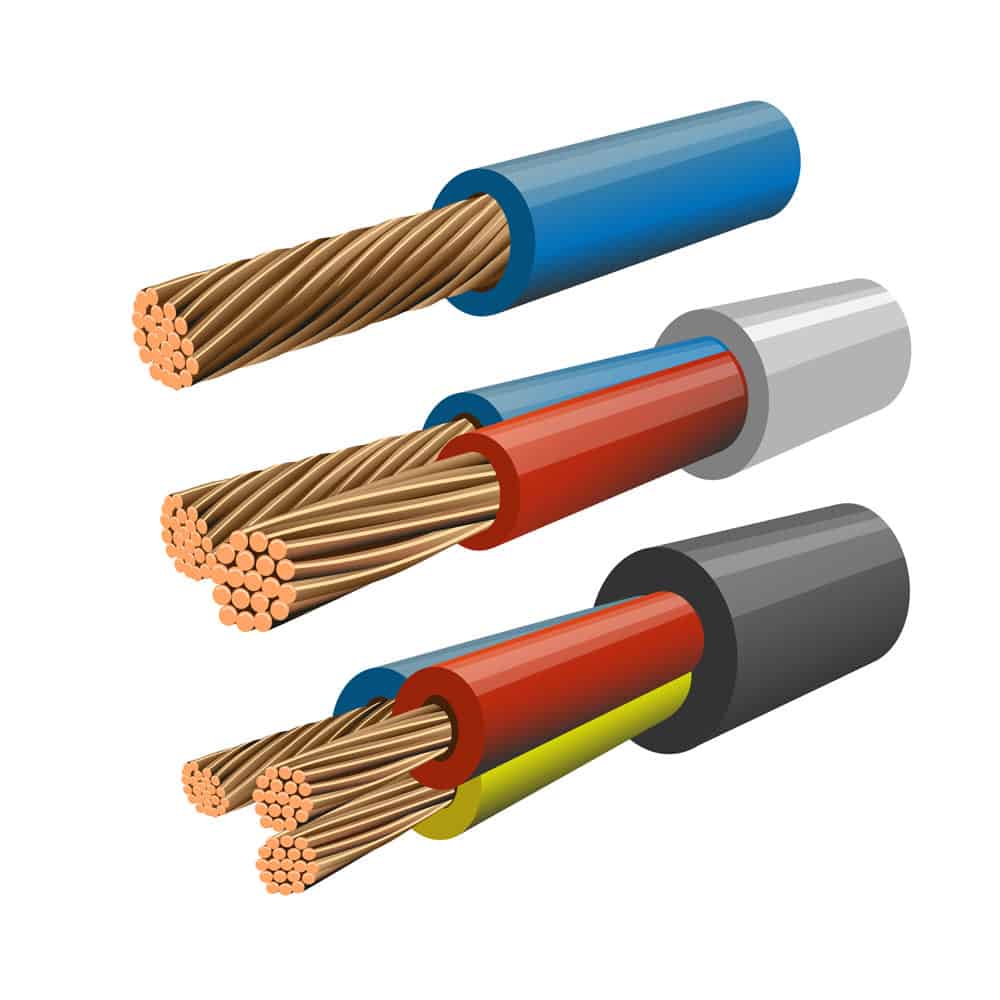

FLAME RETARDANT MULTI STRAND
Wiring in all installations where fire safety is more important. Schools, theaters, commercial complexes, air conditioned apartments, high rise buildings, fire alarms and emergency lighting circuits
Applications
Wiring in all installations where fire safety is more important. Schools, theaters, commercial complexes, air conditioned apartments, high rise buildings, fire alarms and emergency lighting circuits
FLAME RETARDANT MULTI STRAND
single core unsheathed flexible cables in voltage grade upto and including 1100 VAvailable in 90 mtr. box packing
Available in 90 mtr. box packing
| Product Code | No. of Strands/ Nom. Dia of strand(mm) |
Length in mtr. |
Nom. Area of cond. mm |
|---|---|---|---|
| 101 | 24 / 0.2 | 90 mtr. | 0.75 |
| 102 | 14 / 0.3 | 90 mtr. | 1.0 |
| 103 | 22 / 0.3 | 90 mtr. | 1.5 |
| 104 | 36 / 0.3 | 90 mtr. | 2.5 |
| 105 | 56 / 0.3 | 90 mtr. | 4.0 |
| 106 | 84 / 0.3 | 90 mtr. | 6.0 |
| 107 | 28 / 0.3 | 90 mtr. | 2.0 |
Available in polythene & cloth Packing
| Product Code | No. of Strands/ Nom. Dia of strand(mm) |
Length in mtr. |
Nom. Area of cond. mm |
|---|---|---|---|
| 108 | 140 / 0.3 | (90 mtr.) | 10.0 |
| 109 | 126 / 0.4 | (90 mtr.) | 16.0 |
| 110 | 196 / 0.4 | (90 mtr.) | 25.0 |
| 111 | 276 / 0.4 | (90 mtr.) | 35.0 |
| 112 | 396 / 0.4 | (90 mtr.) | 50.0 |
| 113 | 556 / 0.4 | (90 mtr.) | 70.0 |
Available in 45 mtr. pouch packing
| Product Code | No. of Strands/ Nom. Dia of strand(mm) |
Length in mtr. |
Nom. Area of cond. mm |
|---|---|---|---|
| 114 | 14 / 0.3 | (45 mtr.) | 1.0 |
| 115 | 22 / 0.3 | (45 mtr.) | 1.5 |
| 116 | 36 / 0.3 | (45 mtr.) | 2.5 |
| 117 | 56 / 0.3 | (45 mtr.) | 4.0 |
| 118 | 84 / 0.3 | (45 mtr.) | 6.0 |
| 119 | 28 / 0.3 | (45 mtr.) | 2.0 |
Available in 180 mtr. pouch packing
| Product Code | No. of Strands/ Nom. Dia of strand(mm) |
Length in mtr. |
Nom. Area of cond. mm |
|---|---|---|---|
| 120 | 24 / 0.2 | (180 mtr.) | 0.75 |
| 121 | 32 / 0.2 | (180 mtr.) | 1.0 |
| 122 | 30 / 0.25 | (180 mtr.) | 1.5 |
| 123 | 50 / 0.25 | (180 mtr.) | 2.5 |
| 124 | 56 / 0.3 | (180 mtr.) | 4.0 |
| 125 | 84 / 0.3 | (180 mtr.) | 6.0 |
| 126 | 28 / 0.3 | (180 mtr.) | 2.0 |
Available in 270 mtr. pouch packing
| Product Code | No. of Strands/ Nom. Dia of strand(mm) |
Length in mtr. |
Nom. Area of cond. mm |
|---|---|---|---|
| 127 | 24 / 0.2 | (270 mtr.) | 0.75 |
| 128 | 32 / 0.2 | (270 mtr.) | 1.0 |
| 129 | 30 / 0.25 | (270 mtr.) | 1.5 |
| 130 | 50 / 0.25 | (270 mtr.) | 2.5 |
| 131 | 28 / 0.3 | (270 mtr.) | 2.0 |
