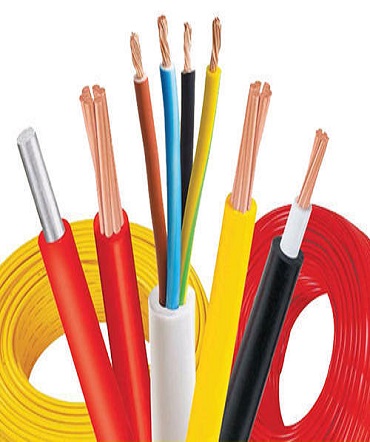

MULTICORE ROUND CABLES

MULTICORE ROUND CABLES

Low attenuation | No cross talk | Flame retardant jacket | True sound

Manufactured from bright annealed 99.97% pure bare copper conductors these cables offer low conductor resistance. These wires are insulated with in house manufactured specially formulated PVC compound. The tough robust outer PVC jacket protects it from oils, greases, various chemicals and abrasions giving the wire a long life and ensuring electrical safety.

Color:4 core of color coded
Length:Upto 100mtr
Material:99.97% pure bare copper conductors
No. of Strands/ Nom. Dia of strand(mm):Upto 220 / 0.45

FEATURES

Manufactured from bright annealed 99.97% pure bare copper conductors these cables offer low conductor resistance. These wires are insulated with in house manufactured specially formulated PVC compound. The tough robust outer PVC jacket protects it from oils, greases, various chemicals and abrasions giving the wire a long life and ensuring electrical safety.

Applications

Multicore Cables are very versatile and can be used in control panels for heavy industries, heavy machineries, air-condition, motors, etc.

Available in 100 & 500 mtr. pouch & polythene packing.

MULTICORE ROUND FR PVC insulated & sheathed black cables in voltage grade up to and including 1100V
Product Code No. of Strands/ Nom. Dia of strand(mm) Length
in mtr.		 Nom. Area of cond. mm Cable Type
502 16 / 0.20 100 mtr. 0.50 2 Core
503 16 / 0.20 100 mtr. 0.50 3 Core
504 16 / 0.20 100 mtr. 0.50 4 Core
505 24 / 0.20 100 mtr. 0.75 2 Core
506 24 / 0.20 100 mtr. 0.75 3 Core
507 24 / 0.20 100 mtr. 0.75 4 Core
508 32 / 0.20 100 mtr. 1.00 2 Core
509 32 / 0.20 100 mtr. 1.00 3 Core
510 32 / 0.20 100 mtr. 1.00 4 Core
511 30 / 0.25 100 mtr. 1.50 2 Core
512 30 / 0.25 100 mtr. 1.50 3 Core
513 30 / 0.25 100 mtr. 1.50 4 Core
514 50 / 0.25 100 mtr. 2.50 2 Core
515 50 / 0.25 100 mtr. 2.50 3 Core
516 50 / 0.25 100 mtr. 2.50 4 Core
517 56 / 0.30 100 mtr. 4.00 2 Core
518 56 / 0.30 100 mtr. 4.00 3 Core
519 56 / 0.30 100 mtr. 4.00 4 Core
520 84 / 0.30 100 mtr. 6.00 2 Core
521 84 / 0.30 100 mtr. 6.00 3 Core
522 84 / 0.30 100 mtr. 6.00 4 Core
523 140 / 0.30 100 mtr. 10.00 3 Core
524 140 / 0.30 100 mtr. 10.00 4 Core
525 101 / 0.45 100 mtr. 16.00 3 Core
526 101 / 0.45 100 mtr. 16.00 4 Core
527 168 / 0.45 100 mtr. 25.00 3 Core
528 168 / 0.45 100 mtr. 25.00 4 Core
529 220 / 0.45 100 mtr. 35.00 3 Core
530 220 / 0.45 100 mtr. 35.00 4 Core

Available in 90 mtr. pouch & polythene packing.

Multicore Round Flexible PVC insulated sheathed with bright annealed bare copper based

Product Code No. Strands/Nom. Dia of strand(inch) Length
in mtr.		 Nom. Area of
cond. mm		 Cable Type
306 23 / 0.0060 (90 mtr.) – 2 Core
307 23 / 0.0060 (90 mtr.) – 3 Core
308 40 / 0.0060 (90 mtr.) – 2 Core
309 40 / 0.0060 (90 mtr.) – 3 Core
310 70 / 0.0076 - – 3 Core
